Lincoln Navigator: Rear Disc Brake / Brake Disc. Removal and Installation

Materials

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Vehicles with mechanical parking brake shown, vehicles with electronic parking brake EPB similar.

1.   WARNING: Service actions on vehicles equipped with electronic brake booster and electronic parking brakes may cause unexpected brake application, which could result in injury to hands or fingers. Put the brake system into service mode prior to servicing or removing any brake components. Failure to follow this instruction may result in serious personal injury.

   Activate the EPB service mode.
   Refer to: Electronic Parking Brake (EPB) Service Mode Activation and Deactivation (206-05) .


1. Remove the wheel and tire.
   Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).


1. NOTICE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.

   NOTICE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

   Remove the anchor plate bolts and position the brake caliper and anchor plate assembly aside. Discard the bolts.
   Torque: 258 lb.ft (350 Nm)

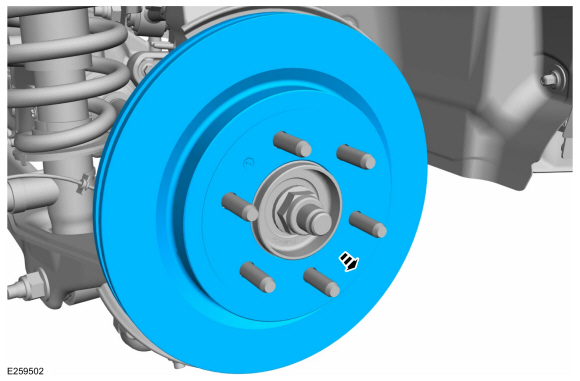

1. Remove the brake disc.


Installation

1. Clean the brake disc mating surfaces using a wire brush and the specified material.
   Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B, APM-4-C

1. NOTICE: Make sure that the brake hose is not twisted when installing the brake caliper or damage to the brake flexible hose may occur.

   To install, reverse the removal procedure.


1. Deactivate the EPB service mode.
   Refer to: Electronic Parking Brake (EPB) Service Mode Activation and Deactivation (206-05) .


1. Apply the brake pedal several times to verify correct brake system operation.
