Lincoln Navigator: Automatic Transmission External Controls / Downshift Paddle Switch. Removal and Installation

Lincoln Navigator 2018-2025 Workshop Manual / Automatic Transmission / Automatic Transmission External Controls / Downshift Paddle Switch. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

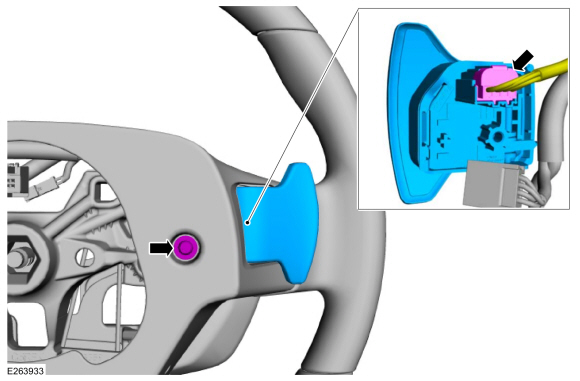

Remove the screw, disconnect the electrical connector and remove the downshift paddle switch.

Installation

To install, reverse the removal procedure.
