Lincoln Navigator: Exterior Lighting / High Mounted Stoplamp. Removal and Installation
Removal
-
Remove the rear spoiler.
Refer to: Rear Spoiler (501-08 Exterior Trim and Ornamentation, Removal and Installation).
-

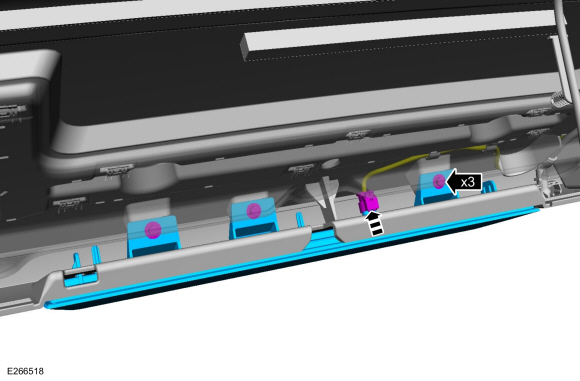

Remove the bolts and the high mounted stop lamp assembly.
-
Disconnect the electrical connector.
-
Disconnect the electrical connector.
 |
Installation
-
To install, reverse the removal procedure.
Headlamp Switch. Removal and Installation
Special Tool(s) /
General Equipment
Interior Trim Remover
Removal
NOTE:
Removal steps in this procedure may contain installation details...
Light Sensor. Removal and Installation
Special Tool(s) /
General Equipment
Interior Trim Remover
Removal
Using a non-marring tool release and position the light sensor...
