Lincoln Navigator: Second Row Seats / Second Row Seat Manual Release Handle. Removal and Installation
Special Tool(s) /
General Equipment
Removal
NOTE:
LH seat shown, others similiar.
-

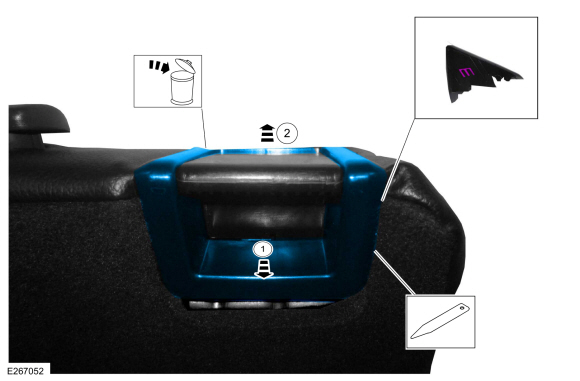

Remove the second row seat manual release handle bezel.
-
Slide the release handle bezel rearward.
Use the General Equipment: Interior Trim Remover
-
Pull the release handle bezel upward and out.
-
-

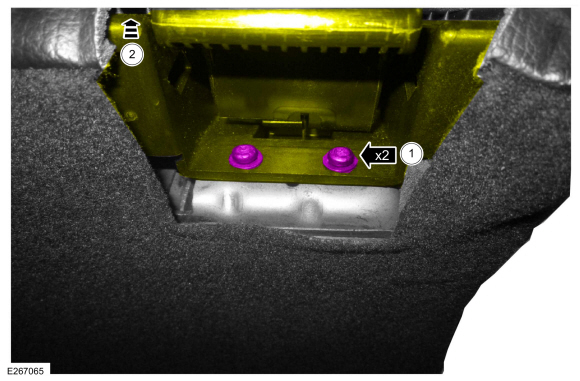

Remove the screws.
-
Position the second row seat manual release handle up to access the actuator cable.
-
Remove the second row seat manual release handle.
-

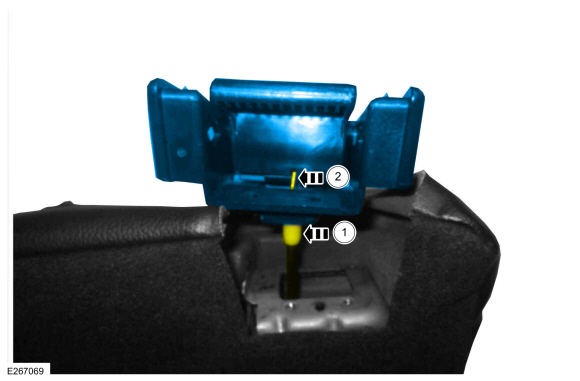

Detach the manual release cable from the second row seat manual release handle retainer.
-
Position the manual release cable through the second row seat manual release handle opening.
Installation
-
To install, reverse the removal procedure.
