Lincoln Navigator: Climate Control System - General Information / Air Distribution Door Actuator. Removal and Installation

Lincoln Navigator 2018-2025 Workshop Manual / Climate Control System / Climate Control System - General Information / Air Distribution Door Actuator. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

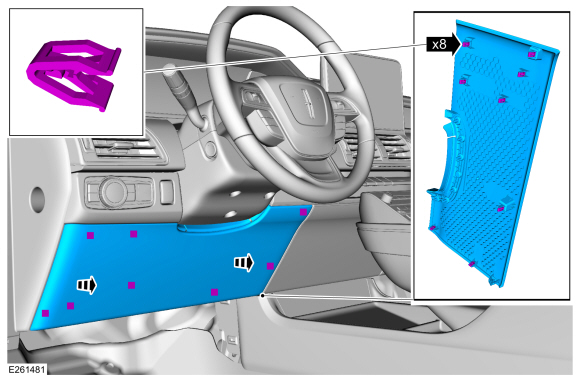

Remove the steering column opening trim panel.

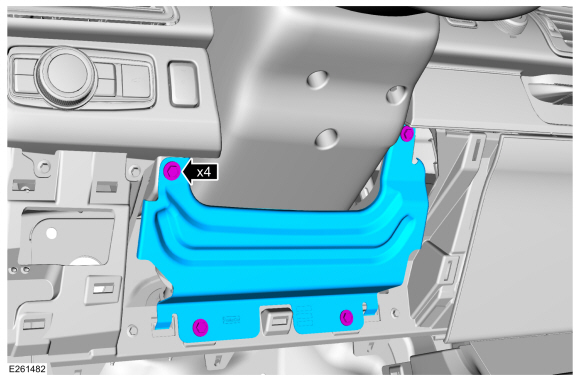

Remove the bolts and the steering column reinforcement panel.
Torque: 80 lb.in (9 Nm)

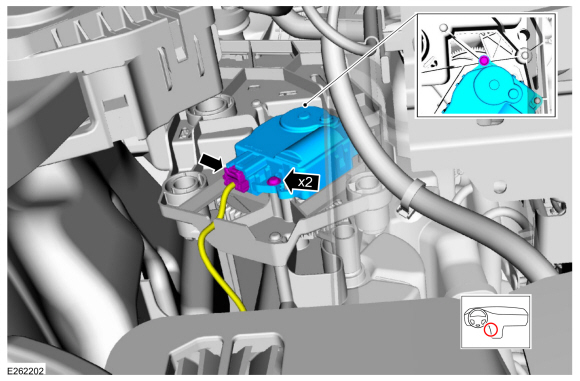

Disconnect the air distribution door actuator electrical connector, remove the retainers and the air distribution door actuator.

Installation

To install, reverse the removal procedure.
