Lincoln Navigator: Information and Entertainment System - General Information - Vehicles With: SYNC 4 / D-Pillar Speaker. Removal and Installation
Special Tool(s) /
General Equipment
Removal
Long wheelbase
-
Remove the upper D-Pillar trim panel.
Refer to: D-Pillar Trim Panel - Long Wheelbase (501-05 Interior Trim and Ornamentation, Removal and Installation).
Short wheelbase
-
Position the third row outer seatbelt retractor guide cover aside.
Use the General Equipment: Interior Trim Remover
-
Position the liftgate opening weatherstrip aside.
-
Release the clips and remove the liftgate opening upper trim panel.
-

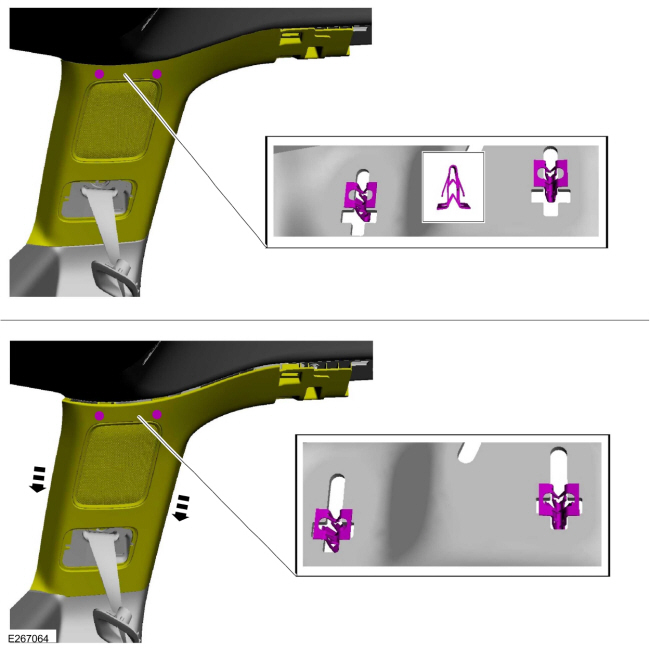

Release the D-pillar trim panel clips.
-
NOTICE:
The D-pillar trim panel must be positioned
downward to allow the upper clips to release correctly. Failure to
follow this direction may cause damage to the D-pillar trim panel.
Slide the D-pillar trim panel down, aligning the clips to the slots in the sheet metal.
-
Position the D-pillar upper trim panel aside and disconnect the electrical connector.
All vehicles
-

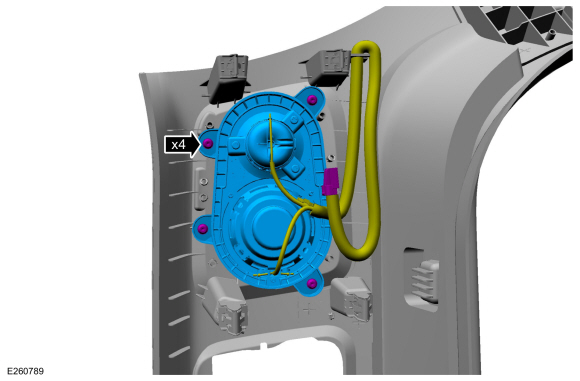

Remove the screws and the D-pillar speaker.
Installation
-
To install, reverse the removal procedure.
