Lincoln Navigator: Information and Entertainment System - General Information - Vehicles With: SYNC 4 / Front Controls Interface Module (FCIM). Removal and Installation
Special Tool(s) /
General Equipment
Removal
-
NOTE:
If installing a new module, it is necessary to
upload the module configuration information to the scan tool prior to
removing the module. This information must be downloaded into the new
module after installation.
Using the diagnostic scan tool, begin the PMI process for the FCIM following the on-screen instructions.
-
Release the clips and remove the front floor console trim panel.
Use the General Equipment: Interior Trim Remover
-
Remove the bolts.
-
On both sides.
Release the clips and remove the upper bezel.
Use the General Equipment: Interior Trim Remover
-
Position the floor console armrest.
-
Remove the front upper console trim panel screws.
-
Remove the upper console trim panel.
-
On both sides.

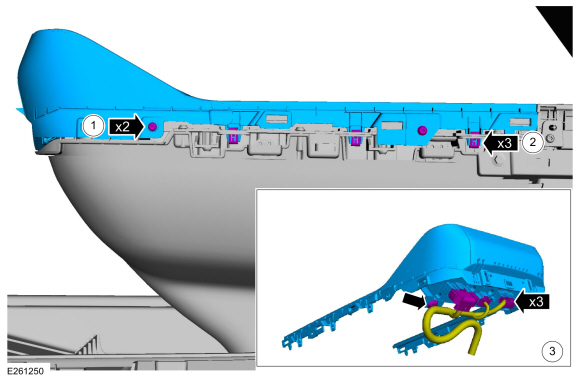

Remove the screws.
-
On both sides.
Release the clips.
-
Disconnect the electrical connectors and separate the wire harness guide.
-

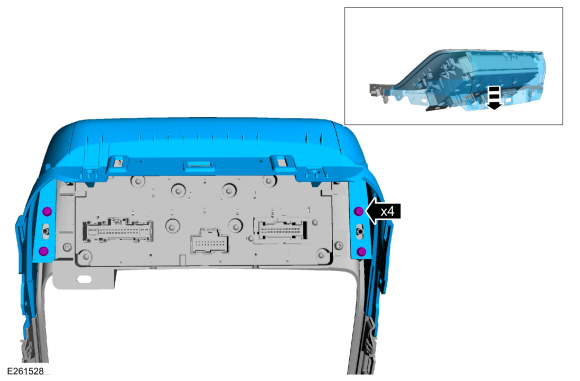

Remove the screws and the trim panel bezel.
-

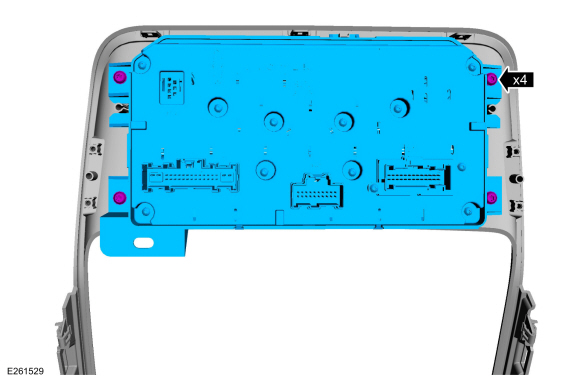

Remove the screws and the FCIM .
Installation
-
To install, reverse the removal procedure.
-
NOTE:
This step is only necessary if replacing the component.
Using the diagnostic scan tool, complete the PMI process for the FCIM following the on-screen instructions.
