Lincoln Navigator: Front Seats / Front Seat Backrest Blower Motor. Removal and Installation

Lincoln Navigator 2018-2025 Workshop Manual / Body and Paint / Front Seats / Front Seat Backrest Blower Motor. Removal and Installation

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Driver seat shown, passenger seat similar.

NOTE: Front seat shown removed from vehicle for clarity.

Depower the SRS .
Refer to: Supplemental Restraint System (SRS) Depowering (501-20B Supplemental Restraint System, General Procedures).

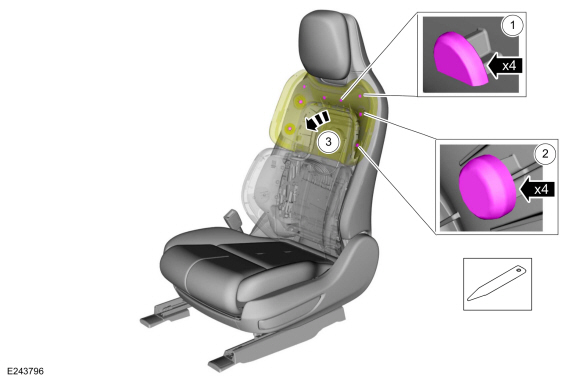

1. On both sides.
  Detach the front seat backrest assembly from the backrest module retainers.
  Use the General Equipment: Interior Trim Remover
1. On both sides.
  Detach the front seat backrest assembly from the backrest module retainers.
  Use the General Equipment: Interior Trim Remover
1. Fold the upper portion of the front seat backrest to access the front seat backrest blower motor.

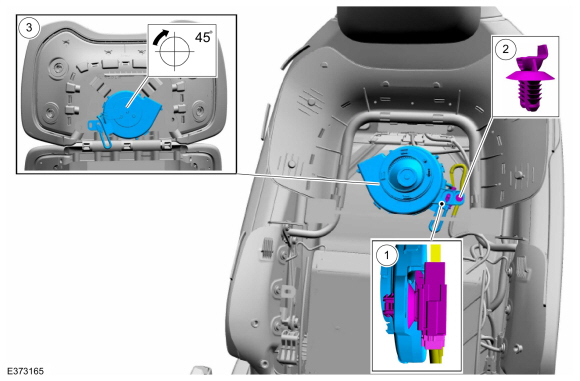

Remove the front seat backrest blower motor.
1. Detach and disconnect the electrical connector.
1. Detach the wiring harness retainer.
1. Rotate the front seat backrest blower motor 45 degrees clockwise to unlock it from the seat backrest carrier.

Installation

To install, reverse the removal procedure.

Repower the SRS .
Refer to: Supplemental Restraint System (SRS) Repowering (501-20B Supplemental Restraint System, General Procedures).
