Lincoln Navigator: Exhaust System - 3.5L EcoBoost (272kW/370PS) / Muffler and Tailpipe. Removal and Installation
Removal
NOTICE:
Do not use oil or grease-based lubricants on the isolators.
These lubricants may cause deterioration of the isolator. This can lead
to separation of the isolator from the exhaust hanger bracket during
vehicle operation.
-
Remove the load floor cover.
-
Position the load floor storage compartment cover up.
-

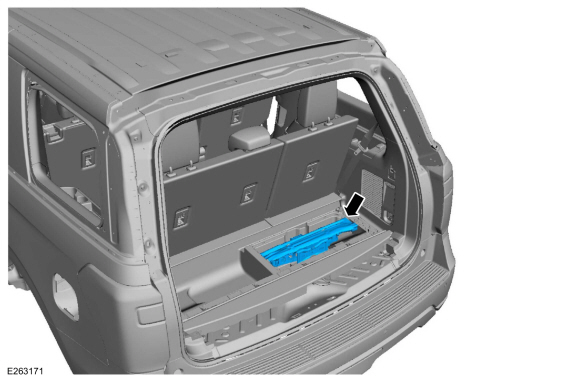

Remove the vehicle jack assembly.
-
Remove the swiel wrench from the tool kit bag, oen the
spare tire winch access plug at the bottom of the compartment for the
jack and the tools tray.
-
-
Insert the swivel wrench through the access hole in the floor to engage the winch.
-
Turn the handle counterclockwise until the tire lowers to the ground and the cable is slightly slack.
-
NOTE:
Slide the retainer through the centre of the spare tire wheel and remove the spare tire wheel.
Remove the spare wheel.
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).
-
Remove the bolts and the heat shield.
Torque:
177 lb.in (20 Nm)
-
-
Loosen the muffler and tailpipe clamp.
Torque:
35 lb.ft (48 Nm)
-
Loosen the muffler and tailpipe clamp.
Torque:
41 lb.ft (55 Nm)
-
Release the locator tab.
-
Remove the bolts and the muffler and tailpipe assembly.
Torque:
18 lb.ft (25 Nm)
Installation
-
To install, reverse the removal procedure.
-
Clean all exhaust connections before reassembly.
-
Check the exhaust system for leaks.
Removal
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation)...
