Lincoln Navigator: Wipers and Washers / Rain Sensor. Removal and Installation
Removal
-
Remove the trim cover.
-

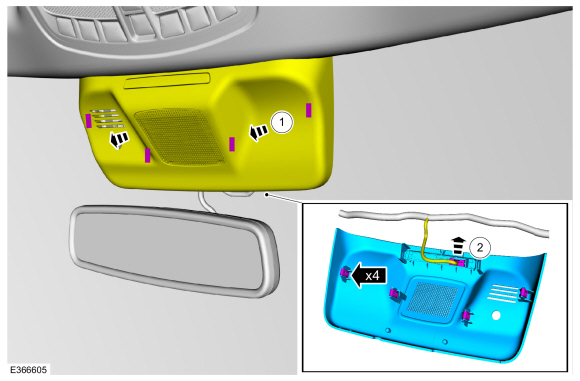

Detach the clips and lower the trim cover.
-
Disconnect the passenger airbag deactivation module electrical connector and remove the trim cover.
-
Detach the clips and lower the trim cover.
 |
-

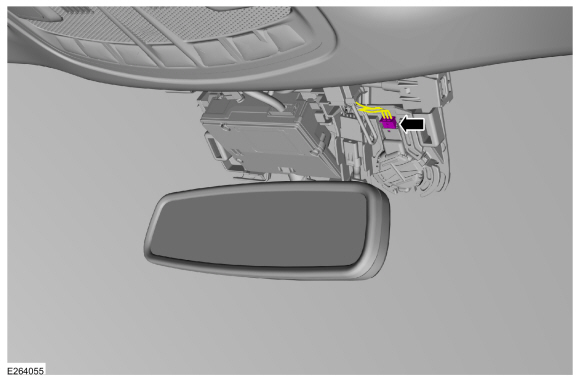

Disconnect the rain sensor electrical connector.
 |
-

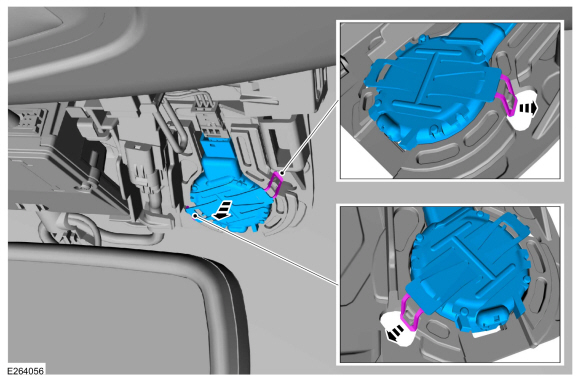

Pull outward on the clips and remove the rain sensor.
 |
Installation
-

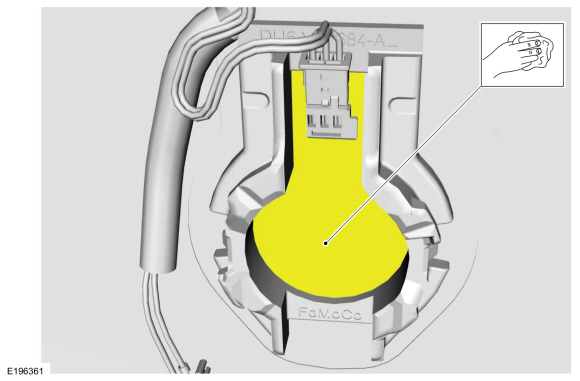

Clean the windshield glass area.
 |
-
NOTE: If the rain sensor gel pack is damaged, install a new rain sensor.

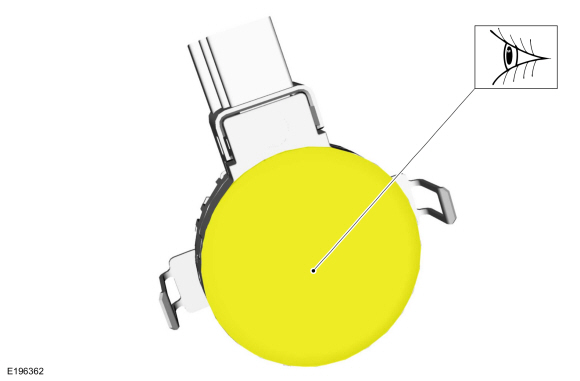

Inspect the rain sensor gel pack for damage.
 |
-
To install, reverse the removal procedure.
