Lincoln Navigator: Information and Entertainment System - General Information - Vehicles With: SYNC 4 / Rear Passenger Entertainment Control Panel. Removal and Installation
Special Tool(s) /
General Equipment
Removal
-
NOTE:
If installing a new module, it is necessary to
upload the module configuration information to the scan tool prior to
removing the module. This information must be downloaded into the new
module after installation.
Using a diagnostic scan tool, begin the PMI process for the RACM following the on-screen instructions.
-

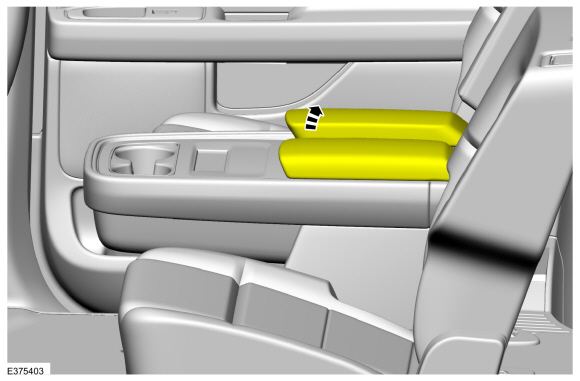

Raise the armrest.
-

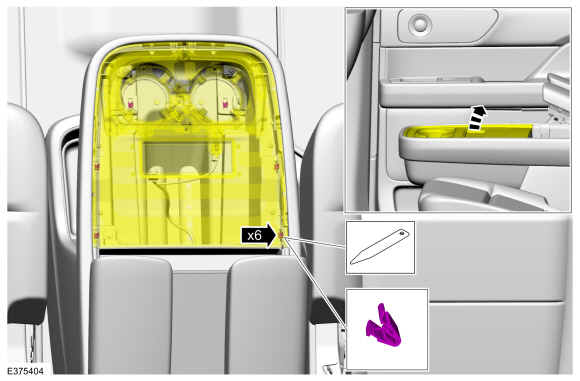

Release the clips and position the rear console top panel up.
Use the General Equipment: Interior Trim Remover
-

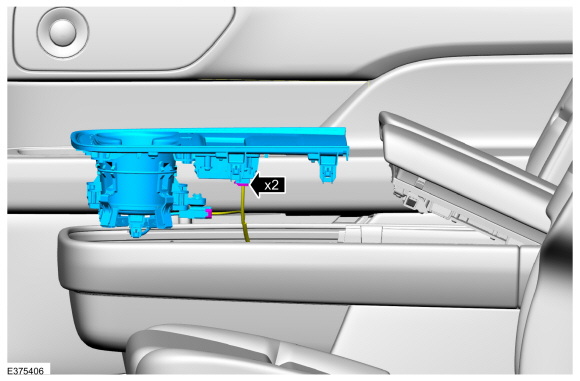

Disconnect the electrical connectors and remove the rear console top panel.
-

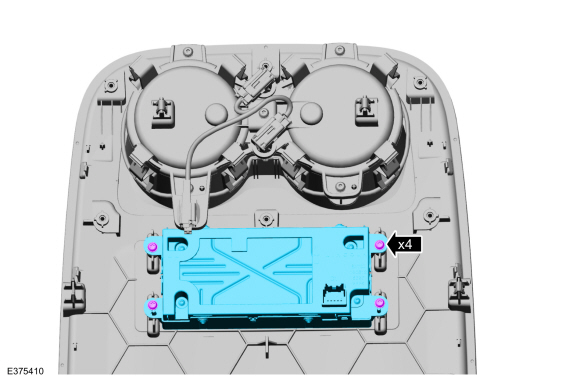

Remove the screws and the rear passenger entertainment control panel.
Installation
-
To install, reverse the removal procedure.
-
NOTE:
This step is only necessary when installing a new component.
Using a diagnostic scan tool, complete the PMI process for the RACM following the on-screen instructions.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the rear door trim panel.
Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation)...
Removal
Lower the headliner.
Refer to: Headliner - Lowering (501-05 Interior Trim and Ornamentation, Removal and Installation).
Disconnect the electrical connector...
