Lincoln Navigator: Information and Entertainment System - General Information - Vehicles With: SYNC 4 / Rear Door Tweeter Speaker. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the rear door trim panel.
Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

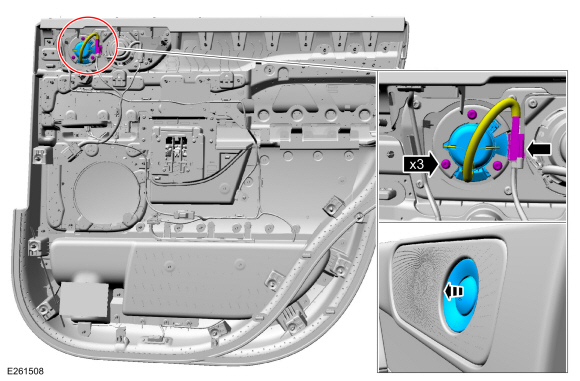

Disconnect the electrical connector, remove the screws and the rear door tweeter speaker.
Torque:
13 lb.in (1.5 Nm)
Installation
-
To install, reverse the removal procedure.
