Lincoln Navigator: Seatbelt Systems / Seatbelt Twisted at the Seatbelt Guide. General Procedures
Adjustment

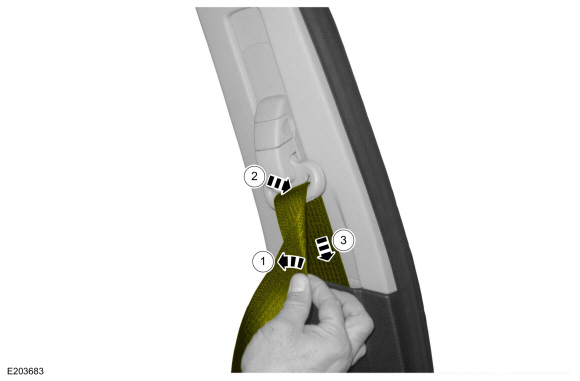

NOTE: Typical D-ring shown, others similar.
-
If required, remove the necessary trim panel(s).
-
-
Fold the seatbelt as indicated.
-
Feed the folded portion of the seatbelt into the D-ring.
-
Pull the seatbelt through the D-ring to remove the twist in the seatbelt.
-
Fold the seatbelt as indicated.
 |
Seatbelt Tongue Rotated On Belt. General Procedures
Adjustment
NOTE:
Typical seatbelt tongue shown, others similar.
Fold the seatbelt as indicated.
Feed the folded portion of the seatbelt into the seatbelt tongue...
Front Seatbelt Anchor and Pretensioner. Removal and Installation
Removal
WARNING:
The following procedure prescribes critical repair steps
required for correct restraint system operation during a crash...
