Lincoln Navigator: Steering Wheel and Column Electrical Components / Steering Column Multifunction Switch LH. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
-
Remove the steering column shrouds.
Refer to: Steering Column Shrouds (501-05 Interior Trim and Ornamentation, Removal and Installation).
-
If equipped.
Remove the steering column control switch.
Refer to: Steering Column Control Switch (211-05 Steering Wheel and Column Electrical Components, Removal and Installation).
-

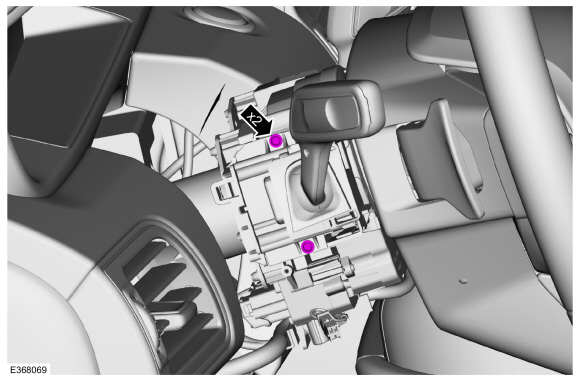

Remove the steering column multifunction switch retainers.
 |
-
Remove the steering column multifunction switch.
-
Release the clip.
-
Remove the steering column multifunction switch.
-
Release the clip.
 |
Installation
-
To install, reverse the removal procedure.
