Lincoln Navigator: Third Row Seats / Third Row Double Seat Cushion Cover. Removal and Installation
Removal
-
Remove the third row double seat.
Refer to: Third Row Seat (501-10C Third Row Seats, Removal and Installation).
-
Detach the third row double seat cushion cover J-clips.
-

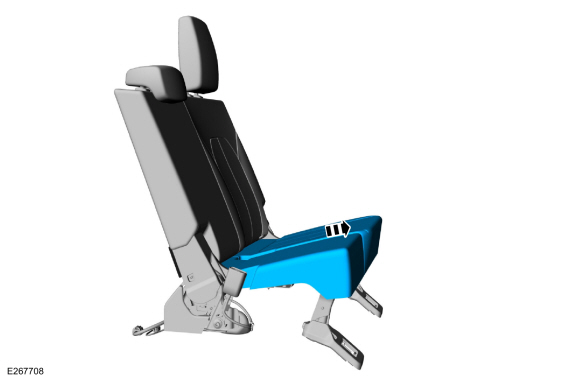

Remove the third row double seat cushion cover and foam as an assembly.
-
NOTICE:
Use care when separating the cushion cover from the
hook-and-loop strips or the hook-and-loop strips may be torn from the
cushion foam.
NOTICE:
Use care when separating the cushion cover from the
hook-and-arrows, or the hooks can be torn from the cushion foam.
NOTE:
This step is only necessary when installing a new component.

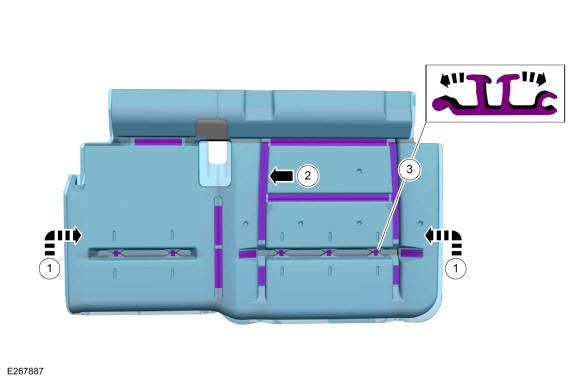

Remove the third row double seat cushion cover.
-
Invert the cushion cover.
-
Release the hook-and-loop strips.
-
Release the hook-and-arrows.
Installation
-
To install, reverse the removal procedure.
