Lincoln Navigator: Third Row Seats / Third Row Single Seat Backrest Cover. Removal and Installation
Removal
-
Remove the third row seat head restraint guide sleeves.
Refer to: Third Row Seat Head Restraint Guide Sleeve (501-10C Third Row Seats, Removal and Installation).
-

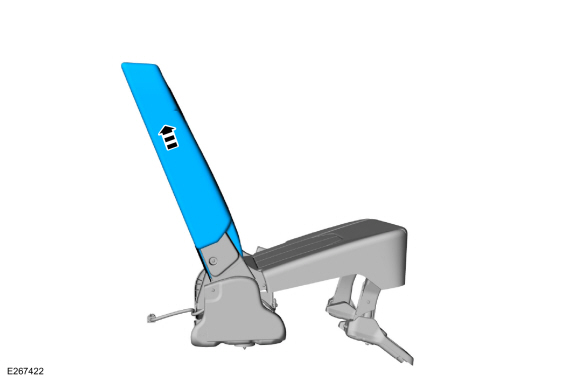

Remove the third row single seat backrest cover and foam as an assembly.
-
NOTICE:
Use care when separating the backrest cover from the
hook-and-loop strips or the hook-and-loop strips may be torn from the
backrest foam.
NOTICE:
Use care when separating the backrest cover from the
hook-and-arrows, or the hooks can be torn from the backrest foam.
NOTE:
This step is only necessary when installing a new component.

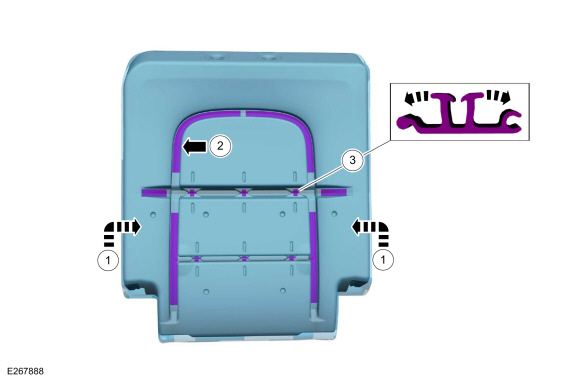

Remove the third row single seat backrest cover.
-
Invert the backrest cover.
-
Release the hook-and-loop strips.
-
Release the hook-and-arrows.
Installation
-
To install, reverse the removal procedure.
