Lincoln Navigator: Fuel Charging and Controls - Turbocharger - 3.5L EcoBoost (272kW/370PS) / Turbocharger - Component Location. Description and Operation

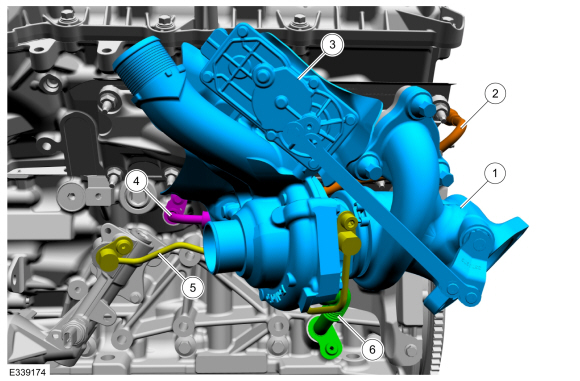

Turbocharger 3.5L EcoBoost/PowerBoost LH
| Item | Description |
|---|---|
| 1 | Turbocharger LH |
| 2 | Turbocharger coolant return tube LH |
| 3 | Wastegate control actuator LH |
| 4 | Turbocharger coolant supply tube LH |
| 5 | Turbocharger oil supply tube LH |
| 6 | Turbocharger oil return tube LH |

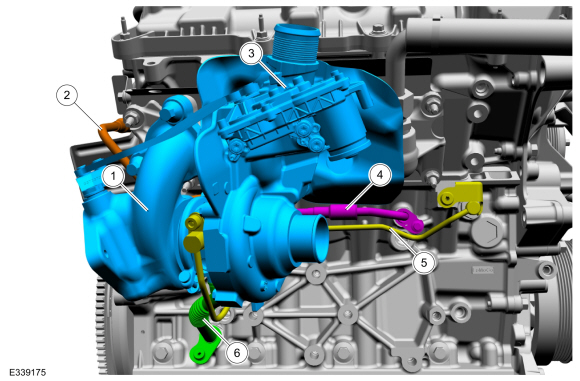

Turbocharger 3.5L EcoBoost/PowerBoost RH
| Item | Description |
|---|---|
| 1 | Turbocharger RH |
| 2 | Turbocharger coolant return tube RH |
| 3 | Wastegate control actuator RH |
| 4 | Turbocharger coolant supply tube RH |
| 5 | Turbocharger oil supply tube RH |
| 6 | Turbocharger oil return tube RH |
Turbocharger - System Operation and Component Description. Description and Operation
System Operation
Turbocharger And Charge Air Cooler (CAC) Systems
Turbocharger System
A turbocharger is an exhaust gas driven device used to increase the
power output of an engine by the turbocharger compressor increasing the
pressure of the air entering the engine...
Turbocharger. Diagnosis and Testing
Pinpoint Tests
PINPOINT TEST A: BLUE SMOKE FROM EXHAUST
Possible Sources
Oil leak
Air cleaner
Air intake
Crankcase ventilation system
Internal engine damage
Turbocharger
A1 CHECK THE EXHAUST
Start the engine...
