Lincoln Navigator: Parking Aid - Vehicles With: Active Park Assist / Azimuth System Check. General Procedures

Lincoln Navigator 2018-2025 Workshop Manual / Instrumentation and Warning Systems / Parking Aid - Vehicles With: Active Park Assist / Azimuth System Check. General Procedures

Check

NOTE: Car shown, trucks are similar.
Turn the ignition ON, engine OFF.

Set the parking brake on.

For automatic transmission place the selector lever in DRIVE (D). For manual transmission place the gearshift lever in FIRST GEAR.

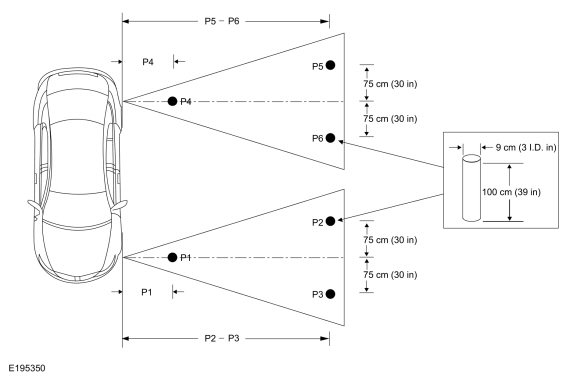

Place the test objects in position shown in the diagram. Refer to specifications in this section.

Monitor the suspect active park assist sensor Parameter Identifications (PIDs) to verify the module detects the objects when placed within the specified locations and record the distances.

Confirm the recorded distances are within the specification ranges.

If the active park assist system does not detect the objects, refer to diagnosis and testing in this section.

Parking Aid. Diagnosis and Testing

Diagnostic Trouble Code (DTC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation)...

Front Active Park Assist Sensors. Removal and Installation

Removal NOTE: Removal steps in this procedure may contain installation details. NOTE: LH side shown, RH side similar. Remove the front wheel and tire assembly...
