Lincoln Navigator: Electronic Engine Controls - 3.5L EcoBoost (272kW/370PS) / Crankshaft Position (CKP) Sensor. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the LH turbocharger.
Refer to: Turbocharger LH (303-04B Fuel Charging and Controls -
Turbocharger - 3.5L EcoBoost (272kW/370PS), Removal and Installation).
-

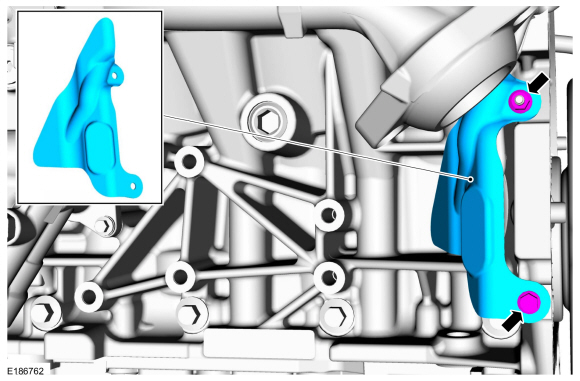

Remove the nut, bolt and the heat shield.
-
Position aside the CKP sensor access plug.
-
NOTE:
Remove the bolt and the CKP sensor from the bell housing before
disconnecting the electrical connector to prevent the CKP sensor from
falling in the bell housing.

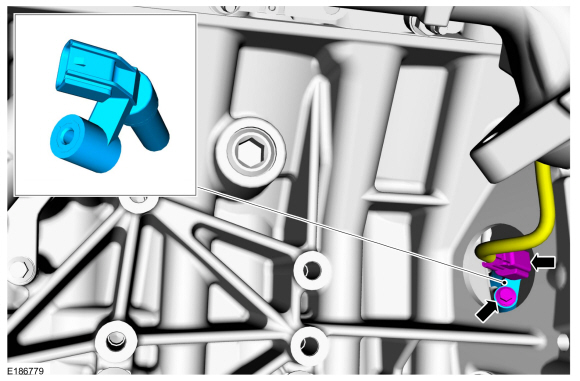

Remove the bolt, disconnect the CKP sensor electrical connector and remove the sensor.
Torque:
89 lb.in (10 Nm)
Installation
-
To install, reverse the removal procedure.
-
Using the scan tool, perform the Misfire Monitor Neutral
Profile Correction procedure, following the on-screen instructions.
