Lincoln Navigator: Exterior Trim and Ornamentation / D-Pillar Moulding. Removal and Installation
Special Tool(s) /
General Equipment
Blind Rivet Gun |
6 mm Drill Bit |
Removal
NOTE:
LWB (long wheel base) shown, SWB (short wheel base) similar.
NOTE:
RH side shown, LH side similar.
-
Open the liftgate.
-
Using a non-marring trim tool, detach the push pin retainers and remove the bodyside moulding.
-
Remove the bodyside fixed glass.
Refer to: Fixed Glass (501-11 Glass, Frames and Mechanisms, General Procedures).
-

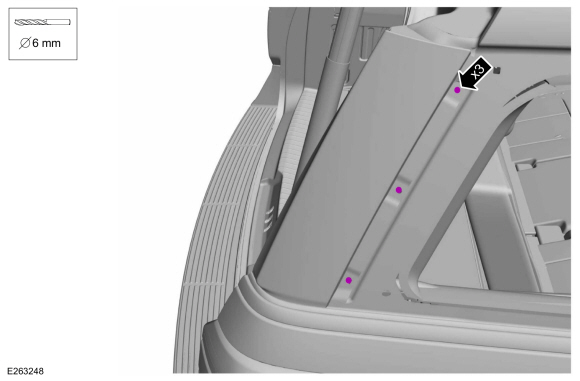

Remove the D-Pillar moulding blind rivets.
Use the General Equipment: 6 mm Drill Bit
-
Remove the blind rivets and remove the D-pillar moulding.
Use the General Equipment: 6 mm Drill Bit
Installation
-
To install, reverse the removal procedure.
-
Install the D-pillar moulding and the blind rivets.
Use the General Equipment: Blind Rivet Gun
-
Install the blind rivets.
Use the General Equipment: Blind Rivet Gun
