Lincoln Navigator: Handles, Locks, Latches and Entry Systems / Exterior Front Door Handle. Removal and Installation
Removal
NOTE:
LH side shown, RH side similar.
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the front door trim panel.
Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

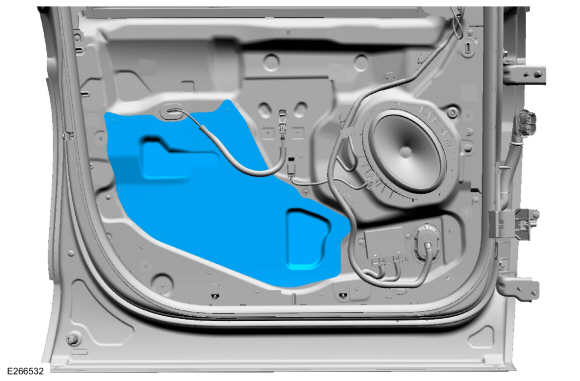

Remove the watershield.
-
NOTE:
The front door is shown transparent for clarity.
Disconnect the exterior front door handle electrical connector.
-

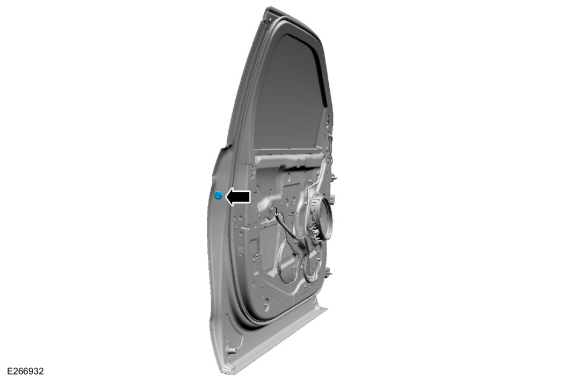

Remove the exterior front door handle access plug.
-
Remove the exterior front door handle and if equipped, the door lock cylinder.
-
Hold the exterior front door handle open.
-
Turn the release screw enough to release the
exterior front door handle and if equipped, the door lock cylinder.
Torque:
62 lb.in (7 Nm)
-
Remove the exterior front door handle and if equipped the door lock cylinder.
Installation
-
To install, reverse the removal procedure.
-
NOTE:
This step is only necessary when installing a new component.
If equipped with Phone as a Key, using the diagnostic scan tool, carry out the RFA module self test.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Repair individual door lock cylinders by discarding the
inoperative door lock cylinder and building a new door lock cylinder
using the appropriate lock repair service kit...
Removal
On the left side.
Remove the fender splash shield.
Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation)...
