Lincoln Navigator: Instrument Panel and Console / Instrument Panel Center Finish Panel. Removal and Installation
Special Tool(s) /
General Equipment
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-

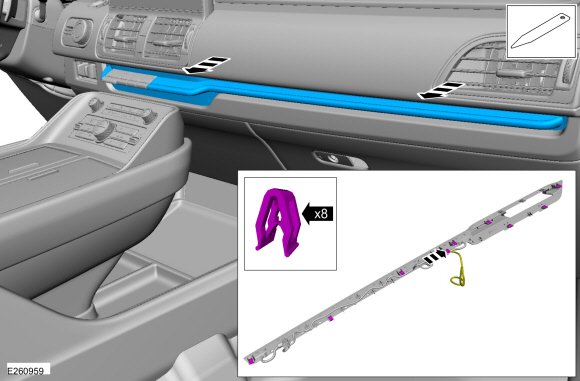

Release the clips and emove the center finish panel.
-
Disconnect the electrical connector.
Use the General Equipment: Interior Trim Remover
-

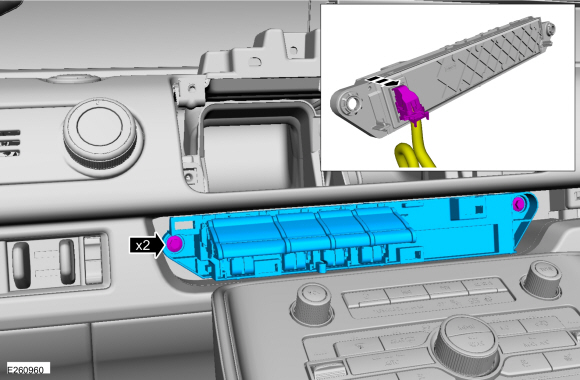

Remove the bolts and the shifter module.
-
Disconnect the electrical connector.
-
Remove the FDIM .
Refer to: Front Display Interface Module (FDIM) (415-00 Information and
Entertainment System - General Information - Vehicles With: SYNC 4,
Removal and Installation).
-

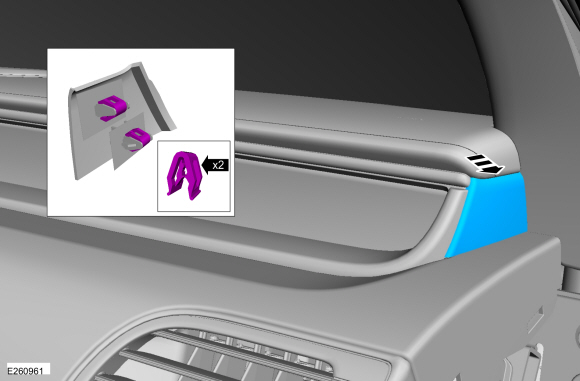

Release the clips and remove the upper RH instrument panel finish panel.
-
Remove the bolts and the instrument panel center finish panel.
-
Disconnect the electrical connectors.
Installation
-
To install, reverse the removal procedure.
-
-

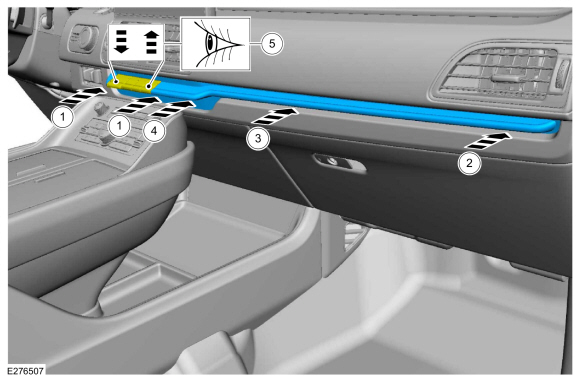

Seat both sides of the instrument panel center finish panel around the GSM .
-
Seat the passenger side of the instrument panel center finish panel.
-
Seat the center right of the instrument panel center finish panel.
-
Seat the center left of the instrument panel center finish panel.
-
Verify the GSM P (Park) and D (Drive) buttons move without interference.
