Lincoln Navigator: Handles, Locks, Latches and Entry Systems / Liftgate Window Glass Release Switch. Removal and Installation
Removal
-
Remove the reversing lamp assembly.
Refer to: Reversing Lamp (417-01 Exterior Lighting, Removal and Installation).
-

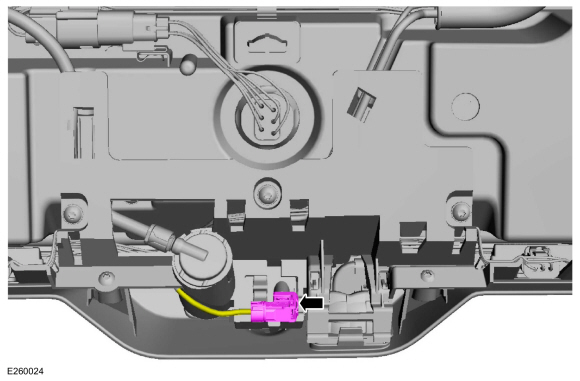

Disconnect the coaxial cable connector.
-
Remove the screws and the bracket.
-

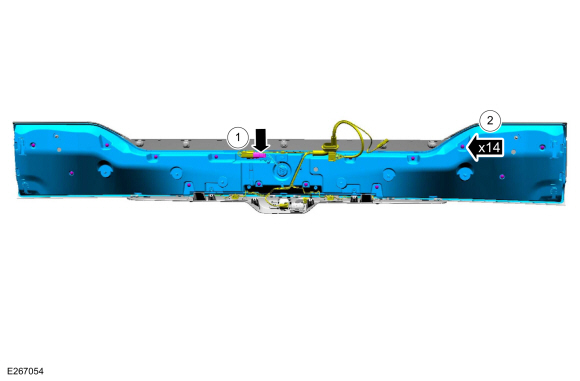

Remove the rear housing.
-
Disconnect the electrical connector and position the wiring harness aside.
-
Remove the screws and the rear housing from the reversing lamp assembly.
-

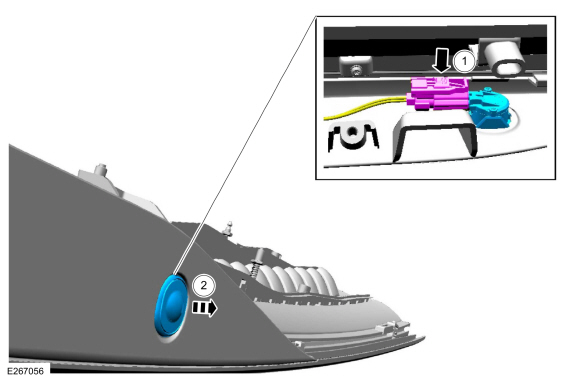

Remove the liftgate window glass release switch.
-
Disconnect the liftgate window glass release switch electrical connector.
-
Remove the liftgate window glass release switch.
Installation
All vehicles
-
To install, reverse the removal procedure.
Vehicles equipped with 360° cameras only
-
Using a diagnostic scan tool, following the on
screen instructions for the LIN New Module Initialization-IPMB configure
the IPMB (image processing module B).
-
Align the 360° cameras
Refer to: 360 Degree View Camera Alignment (413-13B Parking Aid - Vehicles With: Parking Aid Camera, General Procedures).
Vehicles equipped with 360° camera and Trailer Reverse Guidance
-
Using a diagnostic scan tool, following the on
screen instructions for the LIN New Module Initialization-IPMB configure
the IPMB.
-
Align the 360° cameras
Refer to: 360 Degree View Camera Alignment (413-13B Parking Aid - Vehicles With: Parking Aid Camera, General Procedures).
