Lincoln Navigator: Engine System - General Information / Piston Ring End Gap. General Procedures

Lincoln Navigator 2018-2025 Workshop Manual / Engine / Engine System - General Information / Piston Ring End Gap. General Procedures

Special Tool(s) / General Equipment

Feeler Gauge

Check

NOTE: Refer to the appropriate Section 303-01 for the specification.

NOTE: Use care when fitting piston rings to avoid possible damage to the piston ring or the cylinder bore.

NOTE: Piston rings should not be transferred from one piston to another.

NOTE: The cylinder bore must be within specification for taper and out-of-round.

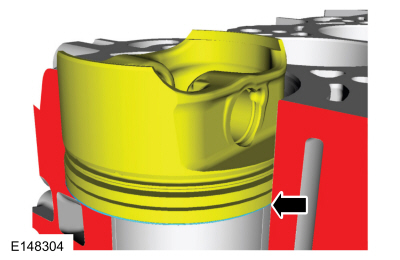

Use a piston without rings to push a piston ring in a cylinder to the bottom of ring travel.

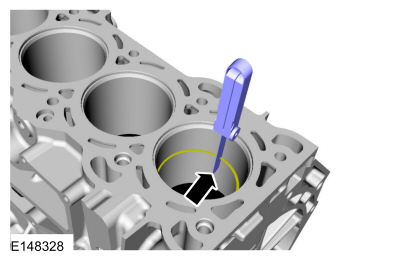

Using the Feeler Gauge Set measure the top piston ring end gap and the second piston ring end gap
Use the General Equipment: Feeler Gauge
