Lincoln Navigator: Exterior Trim and Ornamentation / Power Running Board (PRB). Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).
-
NOTE:
LH side shown, RH side similar.
-
Disconnect the PRB motor electrical connector.
-
Disconnect the PRB lamp electrical connector.
-
Detach the retainer and position aside the harness.
-
Disconnect the PRB lamp harness retainers and position aside the harness.
Torque:
133 lb.in (15 Nm)
-

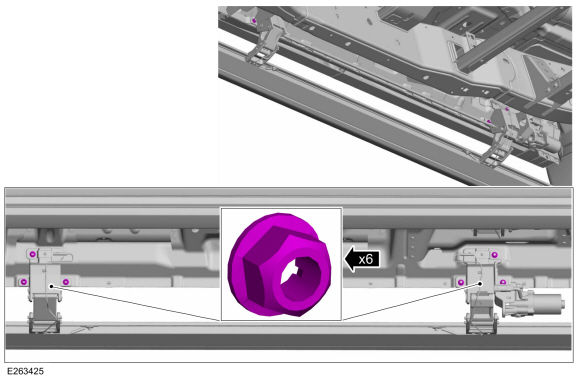

Remove the nuts from the attachment brackets.
Torque:
133 lb.in (15 Nm)
-
Remove the power running board assembly.
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
All vehicles
Lower the door window glass completely...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH similar.
Remove the rear running board bracket...
