Lincoln Navigator: Exterior Trim and Ornamentation / Rear Fender Splash Shield. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
All vehicles
-
Remove the RH side rear wheel.
Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
Long wheelbase
-

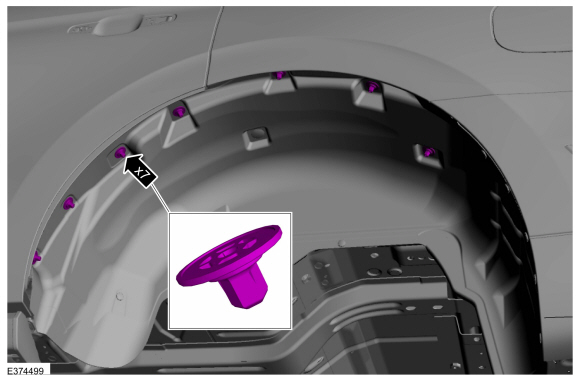

Remove the nuts.
Torque:
28 lb.in (3.2 Nm)
-

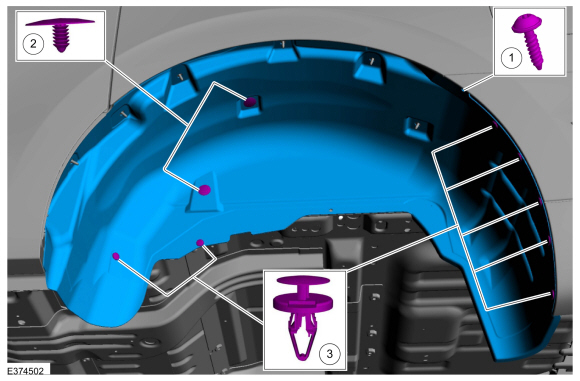

Remove the rear fender splash shield.
-
Remove the screw.
Torque:
13 lb.in (1.5 Nm)
-
Remove the pin-type retainers.
-
Remove the push pin retainers and the rear fender splash shield.
Short wheelbase
-

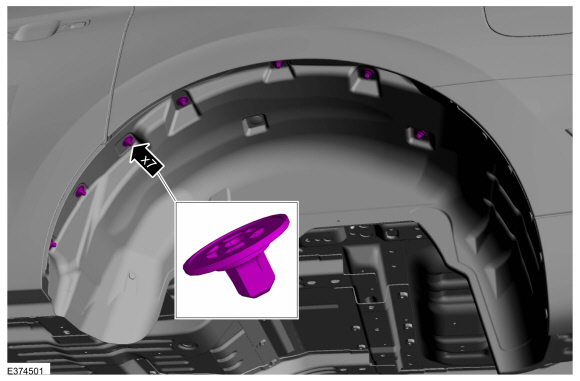

Remove the nuts.
Torque:
28 lb.in (3.2 Nm)
-

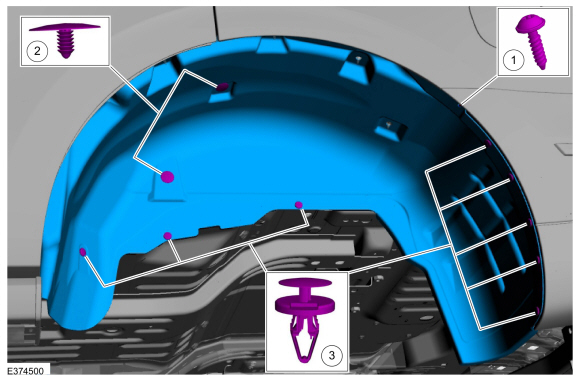

Remove the rear fender splash shield.
-
Remove the screw.
Torque:
13 lb.in (1.5 Nm)
-
Remove the pin-type retainers.
-
Remove the push pin retainers and the rear fender splash shield.
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
