Lincoln Navigator: Seatbelt Systems / Second Row Center Seatbelt Buckle. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
-
Remove the second row center seat.
Refer to: Second Row Center Seat (501-10B Second Row Seats, Removal and Installation).
-
If equipped.

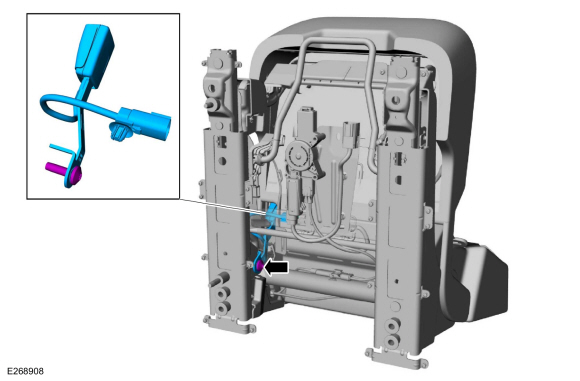

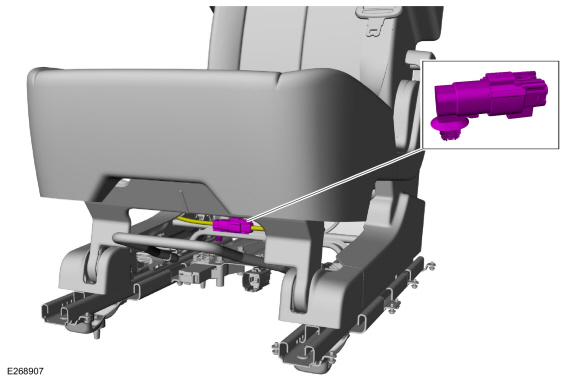

Detach and disconnect the second row center seatbelt buckle electrical connector.
 |
-
Remove bolt and the second row center seat seatbelt buckle.
Torque: 30 lb.ft (40 Nm)
 |
Installation
NOTE: During installation, make sure the seatbelt webbing is not twisted and the seatbelts and buckles are accessible to the occupants.
-
To install, reverse the removal procedure.
-
Check the seatbelt system for correct operation.
Refer to: Seatbelt System Functional Tests (501-20A Seatbelt Systems, General Procedures).
Seatbelt Shoulder Height Adjuster. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH shown, RH similar.
Remove the upper B-pillar trim panel...
Second Row Center Seatbelt Retractor. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the second row center seat backrest cover...
