Lincoln Navigator: Automatic Transmission - 10-Speed Automatic Transmission – 10R80 / Transmission Case. Assembly
Special Tool(s) /
General Equipment
 |
204-594 Forcing screw |
 |
307-549 Installer, Shift Shaft Fluid Seal TKIT-2005D1-F1 |
 |
307-648 Remover/Installer, Rear Bearing TKIT-2009C-F TKIT-2009C-ROW |
 |
307-738 Installer, R2 Bearing |
 |
307-739 Installer, R3 Bearing |
 |
307-740 Installer, Dog Bone |
 |
307-745 Installer, Park Sleeve Roll Pin |
-
NOTE:
This step is only necessary if the transmission case is
being replaced. A new transmission case will not come with heat shields.
If equipped, install the new stick on heat shields to the bellhousing.
-
NOTE:
This step is only necessary if the transmission case is
being replaced. A new transmission case will not come with a vent tube.

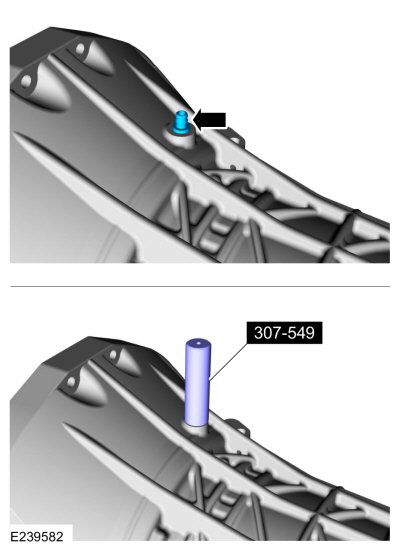

Using the special tool, install the vent tube in the transmission case.
Use Special Service Tool: 307-549
Installer, Shift Shaft Fluid Seal.
-
NOTE:
This step is only necessary if the transmission case is being replaced.
Using a brass punch, install the ball plug (7E195) flush with the transmission case surface.
-
Using the special tools, install the inner output shaft bearing.
Use Special Service Tool: 204-594
Forcing screw.
, 307-648
Remover/Installer, Rear Bearing.
, 307-738
Installer, R2 Bearing.
-
Using the special tools, install the fluid passage sleeve.
Use Special Service Tool: 204-594
Forcing screw.
, 307-648
Remover/Installer, Rear Bearing.
, 307-740
Installer, Dog Bone.
-
Using the special tools, install the outer output shaft bearing.
Use Special Service Tool: 204-594
Forcing screw.
, 307-648
Remover/Installer, Rear Bearing.
, 307-739
Installer, R3 Bearing.
-
Install the line pressure port and rear case plugs.
Torque:
119 lb.in (13.5 Nm)
-
-

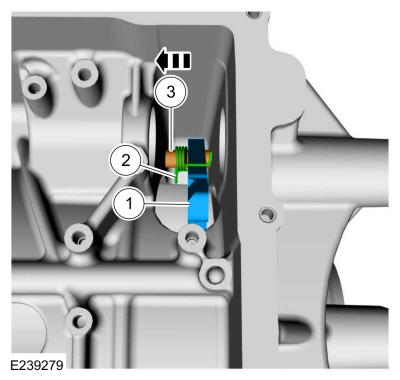

Install the park pawl.
-
Install the park pawl return spring.
-
Install the park pawl shaft.
-
Install the park pawl shaft plug.
Torque:
17 lb.ft (23 Nm)
-
Install new park pawl actuator rod sleeve seals and lubricate them with petroleum jelly.
-
-
Position the park pawl towards the inside of the transmission case.
-
NOTICE:
Do not slide the park pawl actuator rod sleeve to
far into the transmission case or the inner seal will be damaged.
Slide the park pawl actuator rod sleeve into the transmission case.
-
NOTE:
Align the roll pin seam to the inside of the transmission.
Using the special tool install the roll pin to the correct depth.
Use Special Service Tool: 307-745
Installer, Park Sleeve Roll Pin.
Special Tool(s) /
General Equipment
204-594Forcing screw
307-744Remover, Output Shaft Bearing
Remove and discard the park pawl actuator rod sleeve roll
pin (7G100), move the park pawl out of the park pawl actuator rod sleeve
and remove the park pawl actuator rod sleeve...
To install the transmission assembly.
Refer to: Transmission (307-01 Automatic Transmission - 10-Speed Automatic Transmission – 10R80, Removal and Installation)...
