Lincoln Navigator: Fuel Charging and Controls - Turbocharger - 3.5L EcoBoost (272kW/370PS) / Wastegate Control Actuator LH. Removal and Installation
Removal
NOTICE:
The turbocharger compressor vanes can be damaged by even the
smallest particles. When removing any turbocharger or engine air intake
system component, ensure that no debris enters the system. Failure to
do so may result in damage to the turbocharger.
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).
-
Remove the left front fender splash shield.
Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
-

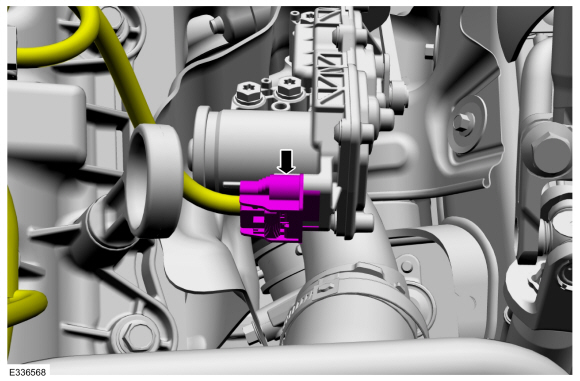

Disconnect the wastegate control actuator electrical connector.
-

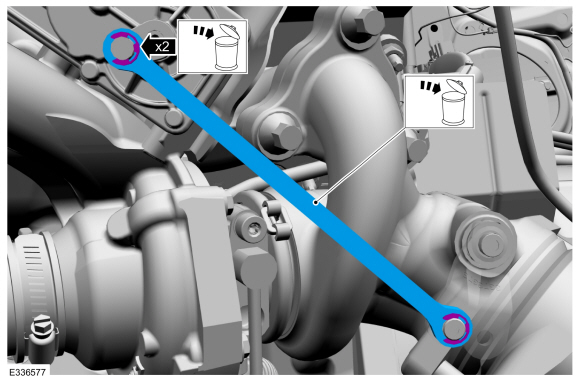

Remove and discard the wastegate control actuator linkage e-clips, then remove and discard the linkage.
-

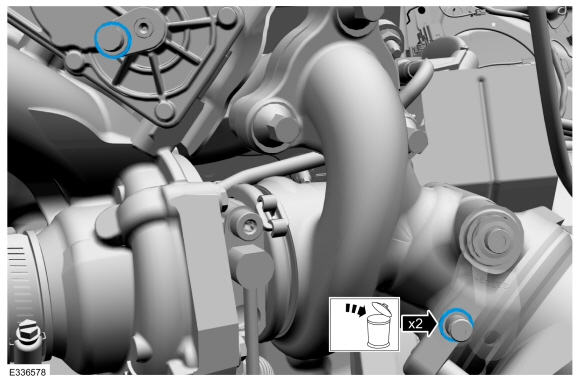

Remove and discard the wastegate control actuator linkage wave washers.
-

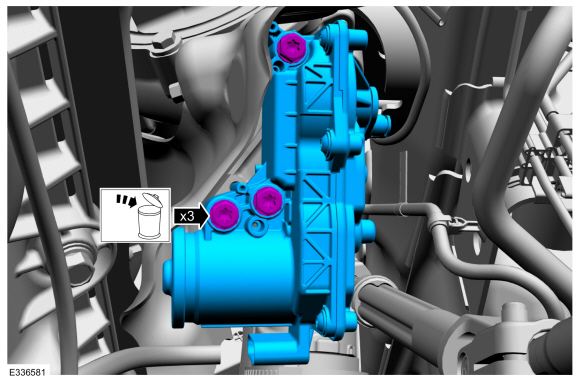

Remove and discard the wastegate control actuator bolts, then remove the wastegate control actuator.
Installation
-

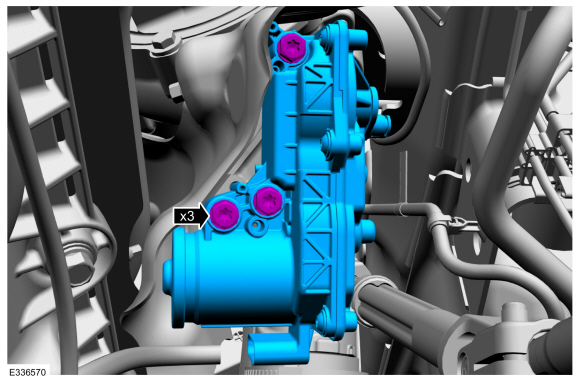

Install the wastegate control actuator, then install and tighten the new bolts.
Torque:
62 lb.in (7 Nm)
-

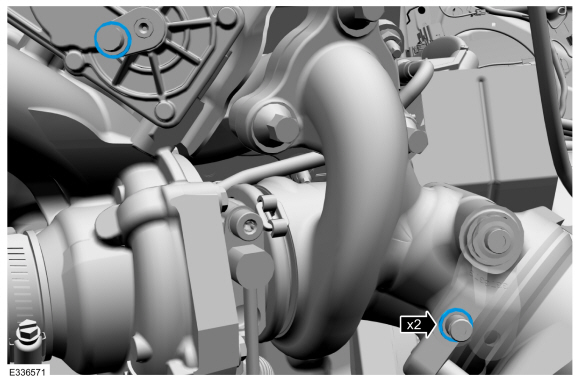

Install the wastegate control actuator linkage wave washers.
-
Install the new wastegate control actuator linkage, then install the new e-clips.
-
Connect the wastegate control actuator electrical connector.
-
NOTICE:
Substantial opening and closing torque is applied by
this system. To prevent injury, be careful to keep fingers away from
wastegate mechanism when actuated. Failure to follow these instructions
may result in personal injury.
-
With the KOEO , using a diagnostic scan tool, clear the PCM DTC's and reset the KAM .
-
Install the left front fender splash shield.
Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
