Lincoln Navigator: Intake Air Distribution and Filtering - 3.5L EcoBoost (272kW/370PS) / Air Cleaner Outlet Pipe LH. Removal and Installation
Removal
NOTICE:
The turbocharger compressor vanes can be damaged by even the
smallest particles. When removing any turbocharger or engine air intake
system component, ensure that no debris enters the system. Failure to
do so may result in damage to the turbocharger.
NOTE:
Removal steps in this procedure may contain installation details.
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).
-
Remove the air cleaner outlet pipe.
Refer to: Air Cleaner Outlet Pipe (303-12 Intake Air Distribution and
Filtering - 3.5L EcoBoost (272kW/370PS), Removal and Installation).
-
Rotate the retaining ring counter clockwise 180 degrees and disconnect the TC bypass tube.
-

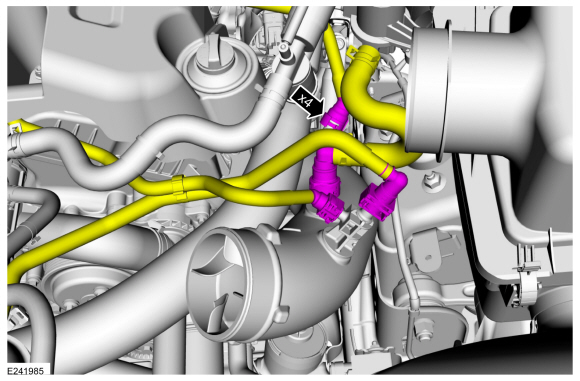

Disconnect the quick release couplings.
Refer to: Quick Release Coupling (310-00 Fuel System - General Information - 3.5L EcoBoost (272kW/370PS))
.
-
NOTE:
The clamp can be accessed through the fender splash shield.
Loosen the clamp and remove the air cleaner outlet pipe LH .
Torque:
44 lb.in (5 Nm)
Installation
-
Inspect the turbocharger or engine air intake system components and clean, if necessary.
-
To install, reverse the removal procedure.
