Lincoln Navigator: Battery, Mounting and Cables / Battery Cables. Removal and Installation
Removal
NOTE:

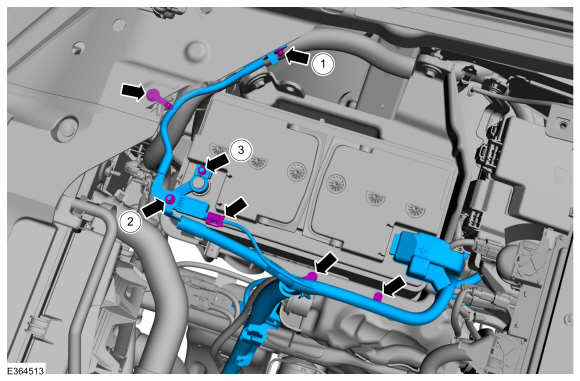

This procedure provides information about routing, retaining
points and connectors of the cable. It does not include the steps for
removing components to gain access to the cable.
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).
-
Disconnect the battery.
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
-
-
Torque:
80 lb.in (9 Nm)
-
Torque:
97 lb.in (11 Nm)
-
Torque:
55 lb.in (6.2 Nm)
-
-
-
Torque:
55 lb.in (6.2 Nm)
-
Torque:
80 lb.in (9 Nm)
-
Torque:
93 lb.in (10.5 Nm)
-
Torque:
93 lb.in (10.5 Nm)
-
-
-
Torque:
177 lb.in (20 Nm)
-
Torque:
177 lb.in (20 Nm)
-
-
Torque:
106 lb.in (12 Nm)
-
Torque:
55 lb.in (6.2 Nm)
-
Torque:
18 lb.ft (25 Nm)
-
Torque:
93 lb.in (10.5 Nm)
-
-
Torque:
106 lb.in (12 Nm)
-
-
Torque:
155 lb.in (17.5 Nm)
Installation
-
To install, reverse the removal procedure.
