Lincoln Navigator: Battery, Mounting and Cables / Battery Monitoring Sensor. Removal and Installation
Removal
NOTE:
When the battery is disconnected and connected, some
abnormal drive symptoms may occur while the vehicle relearns its
adaptive strategy. The vehicle may need to be driven to allow the PCM to relearn the adaptive strategy values.
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTICE:
Be careful not to damage the battery monitoring
sensor when removing the terminal from the battery post. Do not pry on
the terminals or component damage may occur.
NOTE:
The following step is to interrupt power to the
vehicle's electrical system. It is not necessary to disconnect the
positive battery cable terminal.

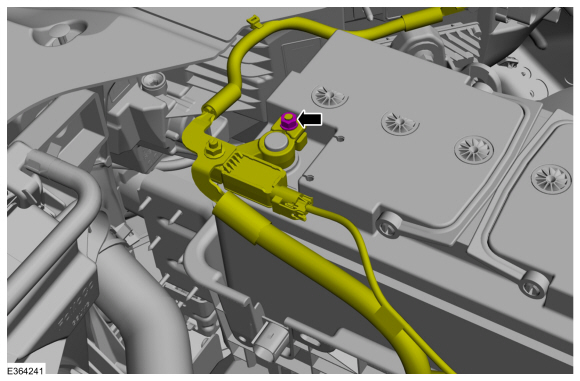

Loosen, but do not remove the nut. Position the negative battery cable aside.
Torque:
55 lb.in (6.2 Nm)
-
NOTICE:
Make sure the battery cable terminal does not
contact the negative battery terminal hold-down clamp. If contact is
made, improper function of the battery monitoring sensor occurs.
-

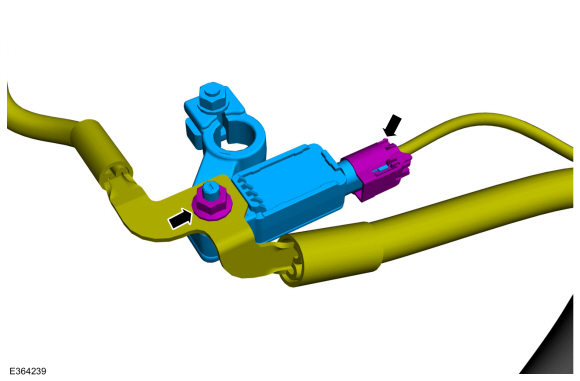

Disconnect the battery monitoring sensor electrical connector.
-
Remove the nut and the battery monitoring sensor.
Torque:
97 lb.in (11 Nm)
Installation
-
To install, reverse the removal procedure.
