Lincoln Navigator: Side and Rear Vision / Blind Spot Information System - Component Location. Description and Operation

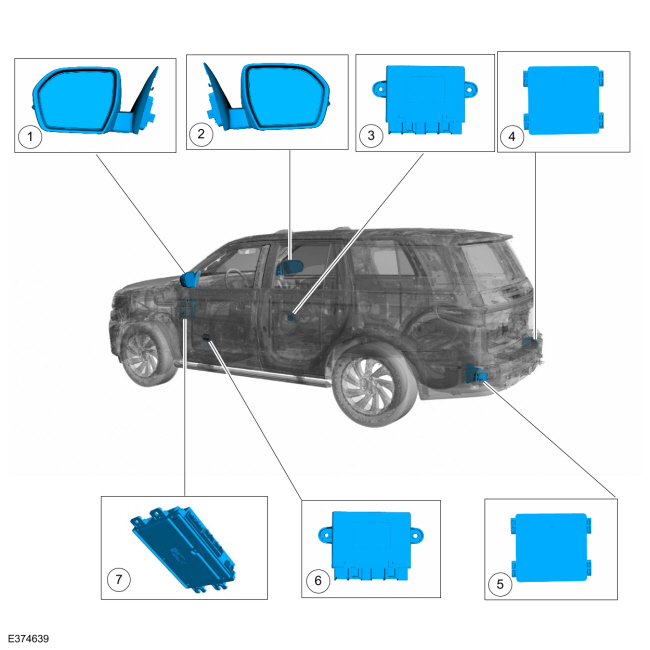

Component Location - Blind Spot Monitoring System (BLIS®)
| Item | Description |
|---|---|
| 1 | LH Exterior Mirror |
| 2 | RH Exterior Mirror |
| 3 | PDM |
| 4 | SODR |
| 5 | SODL |
| 6 | DDM |
| 7 | IPMA |
Blind Spot Information System - Overview. Description and Operation
BLIS ®
The BLIS
® aids the driver in assessing whether another vehicle is present
within a specific area (blind spot) to either side of the vehicle while
driving on roads and highways...
