Lincoln Navigator: Fuel System - General Information - 3.5L EcoBoost (272kW/370PS) / Fuel System Pressure Check. General Procedures
Special Tool(s) /
General Equipment
 |
310-D009
(D95L-7211-A)
Fuel Pressure Test Kit |
Check
NOTE:
This Fuel System Pressure Check is for the low pressure side of the system.
-
Release the fuel system pressure.
Refer to: Fuel System Pressure Release (310-00 Fuel System - General
Information - 3.5L EcoBoost (272kW/370PS), General Procedures).
-
Disconnect the battery ground cable.
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
-

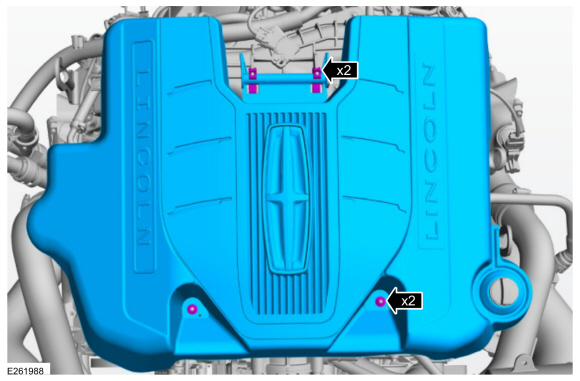

Remove the engine appearance cover retainers, release
the engine appearance cover from the rear retainers and then remove the
engine appearance cover.
Torque:
97 lb.in (11 Nm)
-
Remove the high pressure fuel pump noise insulator.
-
Disconnect the fuel jumper tube-to-high pressure pump quick release coupling.
Refer to: Quick Release Coupling (310-00 Fuel System - General Information - 3.5L EcoBoost (272kW/370PS), General Procedures).
-
Install the Fuel Pressure Test Kit between the fuel jumper tube and the High Pressure Fuel Pump.
Use Special Service Tool: 310-D009
(D95L-7211-A)
Fuel Pressure Test Kit.
-
NOTE:
The Fuel Pump (FP) control module electrical
connector was previously disconnected to release the fuel system
pressure and must be reconnected to test the fuel system pressure.
Reconnect the Fuel Pump (FP) control module electrical connector.
-
Reconnect the battery ground cable.
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
-
NOTE:
Carry out a Key ON Engine OFF (KOEO) visual
inspection for fuel leaks prior to completing the fuel system pressure
test.
Test the fuel system pressure to make sure it is within
the specified range. For additional information, refer to Specifications
in this section.
-
After completion of the fuel system pressure test,
disconnect the battery ground cable, open the drain valve on the Fuel
Pressure Test Kit and release any residual fluid into an appropriate
container.
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
-
Remove the Fuel Pressure Test Kit by reversing the installation steps.
