Lincoln Navigator: Fuel System - General Information - 3.5L EcoBoost (272kW/370PS) / Fuel System Pressure Release. General Procedures
Activation
-
Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety
Precautions (100-00 General Information, Description and Operation).
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).
-
NOTE:
The FPDM is located on the LH outboard frame below driver door.
Remove the FPDM cover by removing the fasteners and bolt.
Torque:
133 lb.in (15 Nm)
-

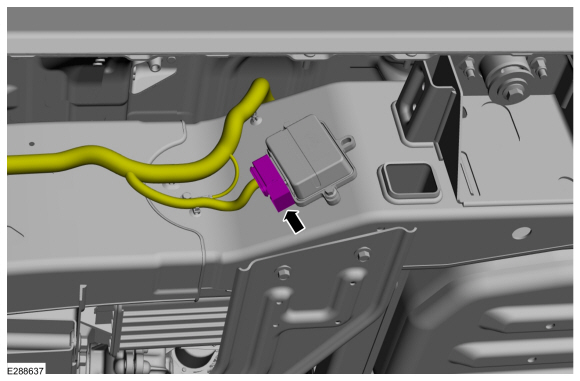

Disconnect the FPDM electrical connector.
-
Start the engine and allow it to idle until it stalls.
-
After the engine stalls, crank the engine for
approximately 5 seconds to make sure the fuel rail pressure has been
released.
-
Turn the ignition switch to the OFF position.
-
When the fuel system service is complete, reconnect the FPDM electrical connector.
-
Install the FPDM cover.
Torque:
133 lb.in (15 Nm)
-
Cycle the ignition key and wait 3 seconds to pressurize
the fuel system. Check for leaks before starting the engine.
-
When service on the fuel system is completed, start the engine and check for leaks.
