Lincoln Navigator: Glass, Frames and Mechanisms / Liftgate Window Glass. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Open the liftgate window glass.
-
NOTE:
Liftgate shown closed for clarity.
Disconnect the heated rear window element electrical connectors.
-
Remove the rear spoiler.
Refer to: Rear Spoiler (501-08 Exterior Trim and Ornamentation, Removal and Installation).
-

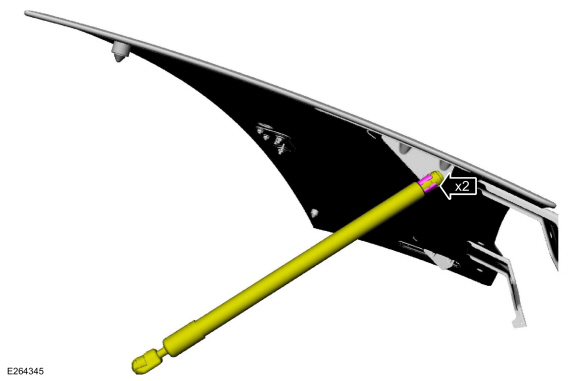

Release the clips and disconnect the rear window glass lift struts.
-
Remove the liftgate window glass.
-

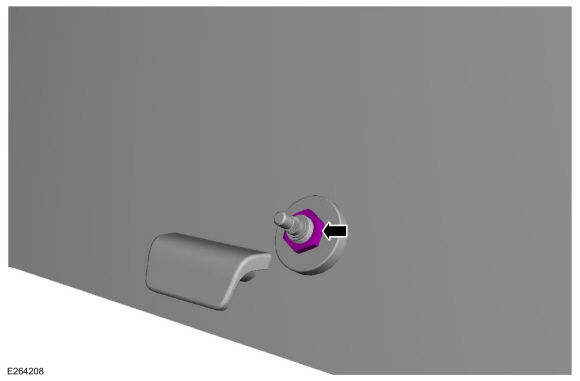

Remove the liftgate window glass hinge nut.
Torque:
106 lb.in (12 Nm)
-
Slide the liftgate window glass off the pivot pins and remove the liftgate window glass.
-
NOTE:
This step is only necessary when installing a new component.
Remove the rear window wiper pivot arm
Refer to: Rear Window Wiper Pivot Arm (501-16 Wipers and Washers, Removal and Installation).
-
NOTE:
This step is only necessary when installing a new component.
Remove the wiper pivot shaft nut cover.
-
NOTE:
This step is only necessary when installing a new component.
Remove the wiper pivot shaft nut.
Torque:
155 lb.in (17.5 Nm)
-
NOTE:
This step is only necessary when installing a new component.
Remove the wiper pivot shaft trim cover.
-
Remove the wiper pivot shaft trim cover bolts.
Torque:
28 lb.in (3.2 Nm)
-
Remove the wiper pivot shaft trim cover.
-
NOTE:
This step is only necessary when installing a new component.
Remove the wiper mounting arm and pivot shaft.
-
Remove the wiper mounting arm and pivot shaft nuts.
Torque:
55 lb.in (6.2 Nm)
-
Remove the wiper mounting arm and pivot shaft.
Installation
-
To install, reverse the removal procedure.
Special Tool(s) /
General Equipment
Interior Trim Remover
Removal
NOTE:
LH side shown, RH side similar.
NOTE:
For non-functional front door window regulators and motors
with the window in the 40 mm open to full closed position, cut the front
door window regulator cables to allow window movement...
Removal
Remove the passenger front door trim panel.
Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation)...
