Lincoln Navigator: Glass, Frames and Mechanisms / Passenger Door Window Control Switch. Removal and Installation
Removal
-
Remove the passenger front door trim panel.
Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

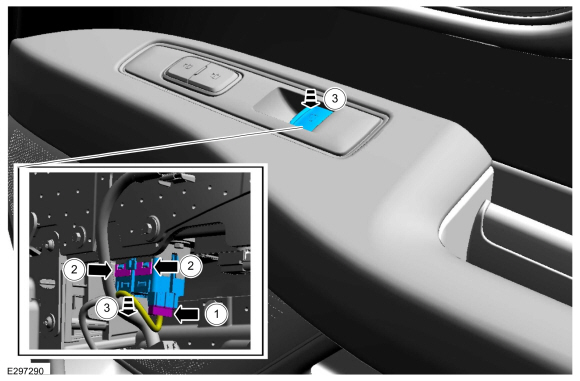

Remove the passenger door window control switch.
-
Disconnect the passenger door window control switch electrical connector.
-
Release the locking tabs from the passenger door window control switch.
-
Remove the passenger door window control switch from the passenger front door trim panel.
-
Disconnect the passenger door window control switch electrical connector.
 |
Installation
-
To install, reverse the removal procedure.
