Lincoln Navigator: Exterior Lighting / Reversing Lamp. Removal and Installation

Lincoln Navigator 2018-2025 Workshop Manual / Lighting / Exterior Lighting / Reversing Lamp. Removal and Installation

Removal

  1. Remove the liftgate trim panel.
    Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  1. Disconnect the electrical connectors and the washer hose.
  1. NOTE: Remove both sides.

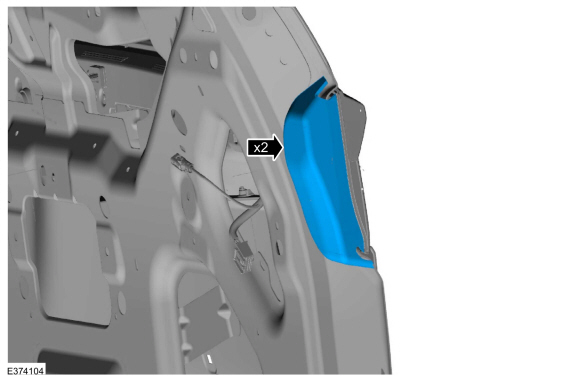

    Remove the reversing lamp side close out covers.
  1. Remove the reversing lamp nuts.
  1. By gently pulling outward, release the snap in clips and remove the reversing lamp.

Installation

All vehicles

  1. To install, reverse the removal procedure.

Vehicles equipped with 360° cameras only

  1. Using a diagnostic scan tool, following the on screen instructions for the LIN New Module Initialization-IMPB configure the IPMB .
  1. Align the 360° camera.
    Refer to: 360 Degree View Camera Alignment (413-13B Parking Aid - Vehicles With: Parking Aid Camera, General Procedures).

Vehicles equipped with 360° camera and Trailer Reverse Guidance

  1. Using a diagnostic scan tool, following the on screen instructions for the LIN New Module Initialization-IMPB configure the IPMB .
  1. Align the 360° camera.
    Refer to: Parking Aid Camera Initialization (413-13B Parking Aid - Vehicles With: Parking Aid Camera, General Procedures).
