Lincoln Navigator: Front Seats / Front Seat Cushion Blower Motor. Removal and Installation

Lincoln Navigator 2018-2025 Workshop Manual / Body and Paint / Front Seats / Front Seat Cushion Blower Motor. Removal and Installation

Removal

NOTE: Driver seat shown, passenger seat similar.

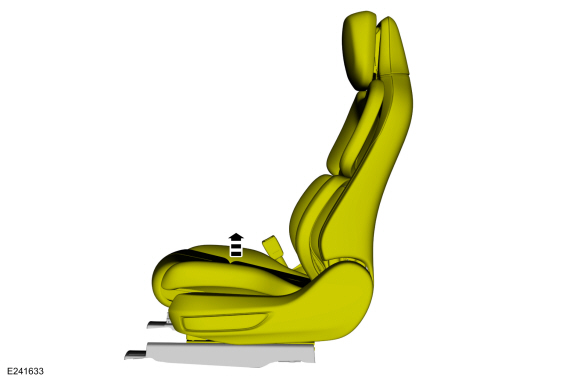

  1. Raise the seat to the full up position.
  1. Depower the SRS .
    Refer to: Supplemental Restraint System (SRS) Depowering (501-20B Supplemental Restraint System, General Procedures).

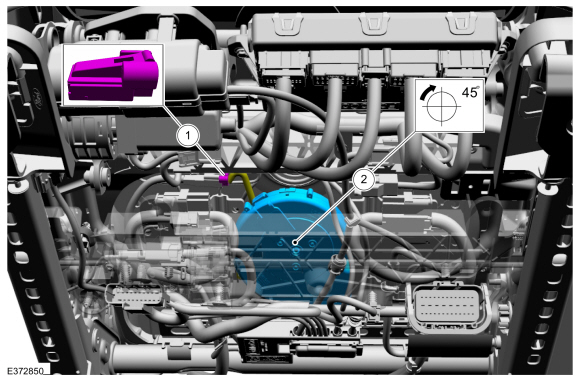

  1. Remove the front seat cushion blower motor.
    1. Disconnect the electrical connector.
    1. Rotate the front seat cushion blower motor 45 degrees clockwise to unlock from the seat cushion suspension.

Installation

  1. To install, reverse the removal procedure.
  1. Repower the SRS .
    Refer to: Supplemental Restraint System (SRS) Repowering (501-20B Supplemental Restraint System, General Procedures).
