Lincoln Navigator: Exterior Trim and Ornamentation / Power Running Board (PRB) Hinge. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).
-
NOTE:
LH side shown, RH side similar.
NOTE:
Support the running board with a jackstand.
-
Disconnect the electrical connection.
Torque:
133 lb.in (15 Nm)
-
Remove the running board mounting screws.
Torque:
133 lb.in (15 Nm)
-
-

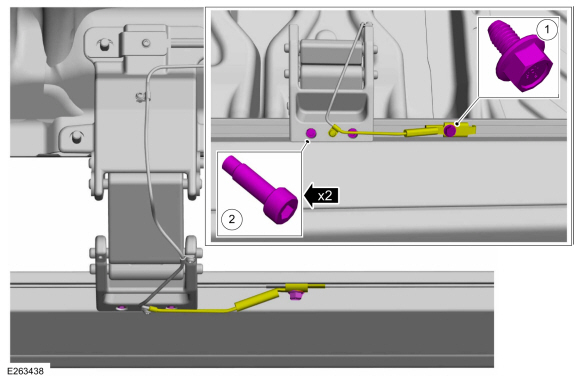

Remove the torque rod mounting screw.
Torque:
133 lb.in (15 Nm)
-
Remove the hinge mounting nuts.
Torque:
133 lb.in (15 Nm)
-

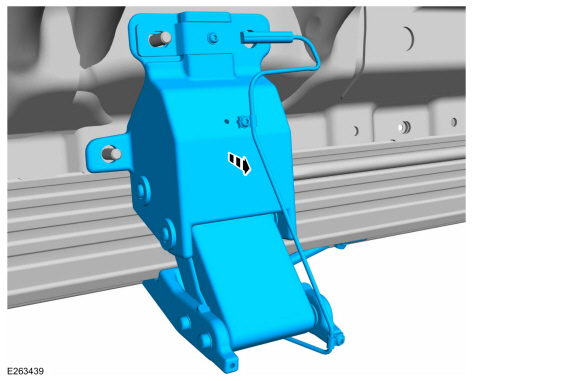

Disengage the torque rod and remove the bracket assembly.
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH similar.
Remove the rear running board bracket...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
The power running board motor and drive bracket are serviced as an assembly...
