Lincoln Navigator: Third Row Seats / Third Row Seat Head Restraint. Removal and Installation
Removal
NOTE:
Double seat shown, single seat similar.
-
Remove the third row seat.
Refer to: Third Row Seat (501-10C Third Row Seats, Removal and Installation).
-

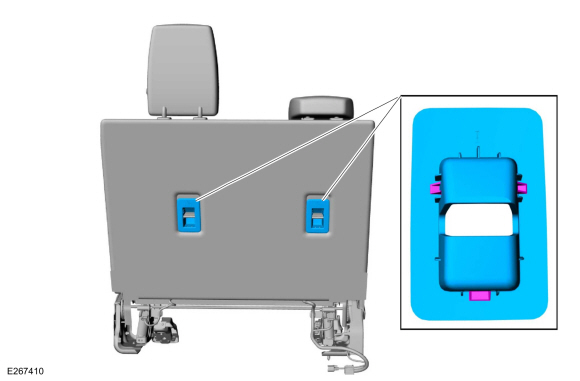

Remove the child safety seat tether anchor bezels.
-
-

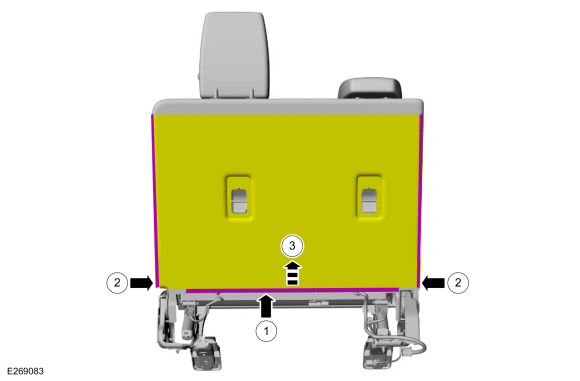

Release the third row double seat backrest cover the J-clip.
-
Unzip the third row double seat backrest cover.
-
Position the third row double seat backrest cover flap aside.
-

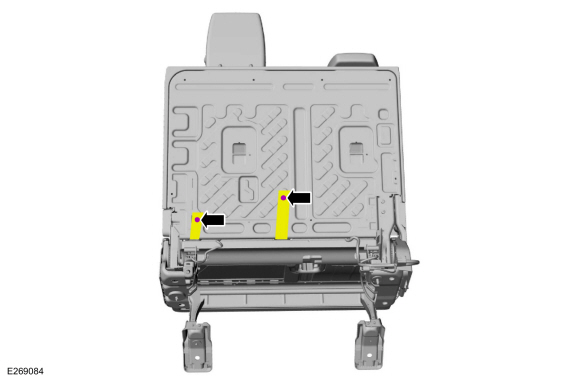

Remove the pin-type retainers and position the third row double seat backrest cover straps aside.
-

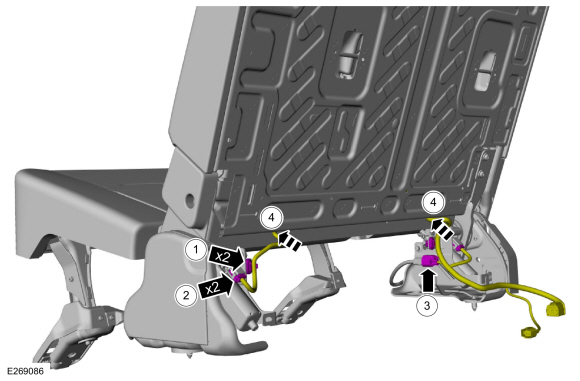

Feed the wiring harnesses through the third row double seat backrest cover.
-
Detach the wiring harness retainers.
-
Disconnect the seat electrical connectors.
-
If equipped. Disconnect the seatbelt buckle electrical connector.
-
Feed the wiring harnesses through the backrest cover.
-

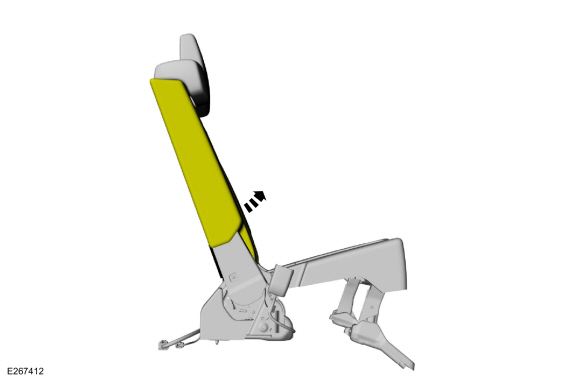

Lift the third row double seat backrest cover.
-

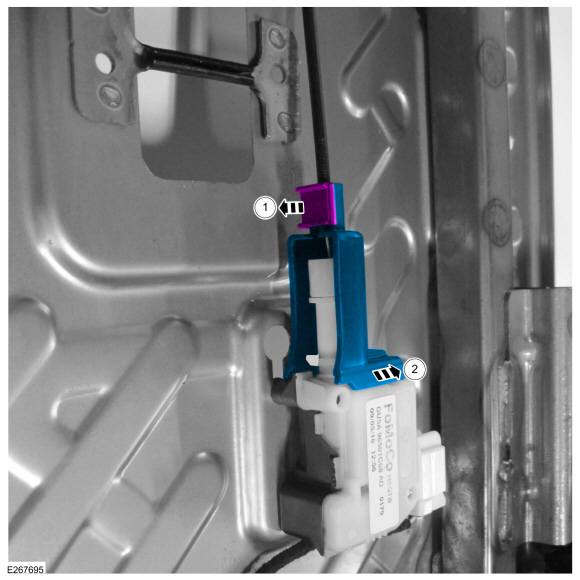

Remove the third row seat head restraint power fold actuator cable guard.
-
Release the cable guard retainer.
-
Remove the cable guard.
-
Remove the third row seat head restraint power fold actuator cable retainer.
-

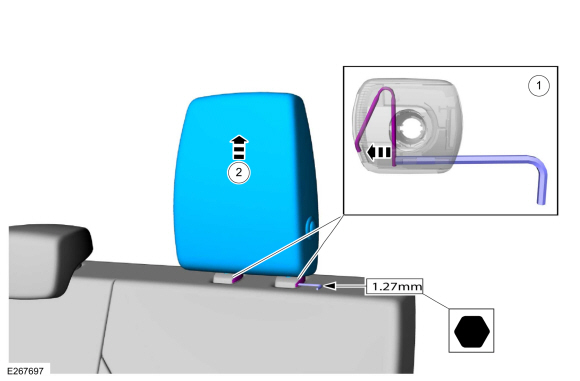

Remove the third row seat outer head restraint.
-
On both head restraint guide sleeves.
Insert a 1.27 mm (0.050 inch) hex key and release the head restraint guide sleeve internal locking spring.
-
Remove the third row seat outer head restraint.
-

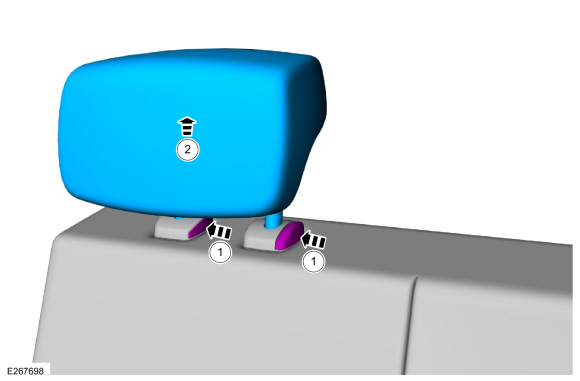

Remove the third row seat center head restraint.
-
Depress the locking tabs.
-
Remove the third row seat center head restraint.
Installation
-
To install, reverse the removal procedures.
